Introducing Tesla Powerwall 2

Get a Quote

MC Electrical are proud to be Tesla Powerwall Certified Installers

 Tesla Powerwall          from:

Tesla Powerwall 2 Retrofit

Tesla Powerwall 2 retrofit to your existing** solar system (AC Coupled)



Tesla Powerwall 2, Fronius, Q Cells-Q.Maxx

Tesla Powerwall 2, 6.6kW Q-Cells 390W Panels, Fronius Primo Inverter


Tesla Powerwall 2, Fronius, Q Cells-G9+

Tesla Powerwall 2, 6.6kW Q-Cells 390W Panels, Fronius Primo Inverter


Tesla Powerwall 2, Fronius, Sunpower

Tesla Powerwall 2, 6.4kW of Sunpower 400W Panels, Fronius Symo 5kW inverter


Tesla Powerwall 2

If you are looking to store your excess solar power for use at night, Tesla Powerwall is the real deal. It’s a beautifully designed battery, but more importantly, it’s designed to last.

The biggest issue with any battery is the heat that is caused on charge and discharge. The better the heat is managed in a battery, the longer the battery will last. At best, other solar storage batteries will use a fan to cool the batteries down. Tesla, on the other hand, use what they call “active cooling” and pump a liquid coolant around the cells that make up Powerwall. It is the active cooling that is the reason the warranty can be so generous. A full 10-year warranty with unlimited cycles. This warranty is not matched by any other battery in the industry.

It shouldn’t come as a surprise that Powerwall is so beautifully functional. The founder of Tesla, Elon Musk (amongst his many other achievements) is responsible for sending the first commercially funded vehicle to the international space station. Soon enough, his fully electric, auto-piloted, Tesla model 3 car will be commonplace on our streets. Mr Musk knows a thing or two about engineering for quality.

Solar Self Consumption

Always Connected


Touch Safe

Back-up Power

Flexible Installation

Grid Independence

Long Life

Weather Proof

Powerwall Benefits

Increasing self-consumption of solar power generation –The problem with solar is night time. It’s not worth sending your power back to the grid for as little as 6 cents only to buy it back at night for 26 cents. Powerwall solves this problem by storing excess solar electricity during the day so you can use it at night.

Load shifting – “Time of use” tariffs have been introduced as an option in Brisbane. On a TOU tariff, you will be charged more for power at dinner time and less at midnight and lunchtime. If you have a “time or use” tariff, we can programme Powerwall to prioritise discharging between peak periods when electricity prices are higher, saving you even more!

Back-up power – It’s when your street in a black-out that you’ll be glad you have a Powerwall. A generous 13.5kW of backup power will be enough to get you by when the grid is down. Make sure a backup power option is included when you are quoted on a Powerwall.

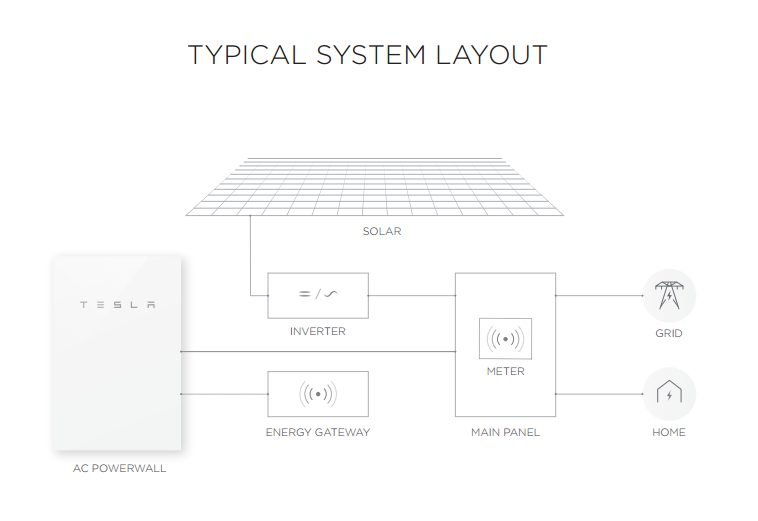

powerwall 2 layout

Powerwall 2 specs:

Mounting: Wall or Floor Mounted, Indoor/Outdoor

Inverter: Fully integrated Tesla inverter

Usable Capacity: 13.5 kWh Power: 5 kW continuous, 7 kW peak Round Trip

Efficiency: 90% Operating Temperature Range: –20°C to 50°C (–4°F to 122°F)

Warranty: 10 years Dimensions: 1150 mm x 755 mm x 155 mm (45.3 in x 29.7 in x 6.1 in)”

Specifications (PDFs)

Powerwall 2

As an AC coupled battery, Powerwall 2 is suitable both for retro-fitting to an existing solar system and installing in a new home. While Powerwall has a built in inverter, it does not replace your existing inverter that is connected to your solar panels. Your existing solar inverter is still required to change (or invert) the power from the solar panels from DC to AC. The inverter in Powerwall 2 is designed to change the AC  from your solar inverter back to DC, so you can charge your battery.

Solar storage is primarily designed so you can use your solar power at night – but you will still be connected to the grid in case you run Powerwall flat. Back-up power (in case of a blackout) should never be assumed when you are purchasing any home storage battery. If you want to use your AC coupled Powerwall during a blackout you’ll need to have a good quality recent model inverter (such as the Fronius Primo). We will also need to install a Tesla AC Backup module and reconfigure your switchboard to suit. In back up mode. Powerwall will give you a limited amount of power on chosen circuits.
